CAT 160H Motor Grader Used in Construction For Sale

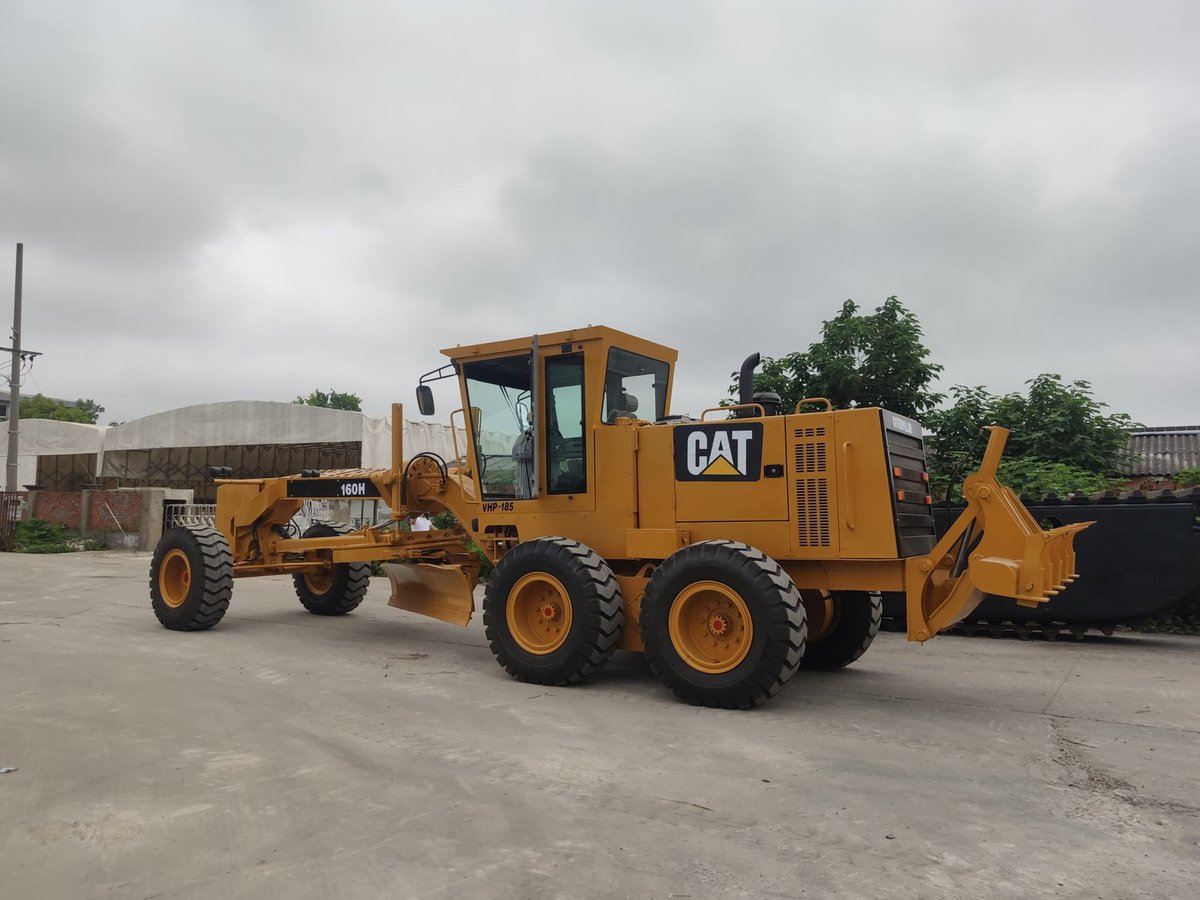

The Cat 160H Motor Grader is a high-performance machine designed for road grading, shaping shoulders, slopes, and ditches, or snow removal. Here’s a detailed description of CAT 160H Motor Grader:

Engine:

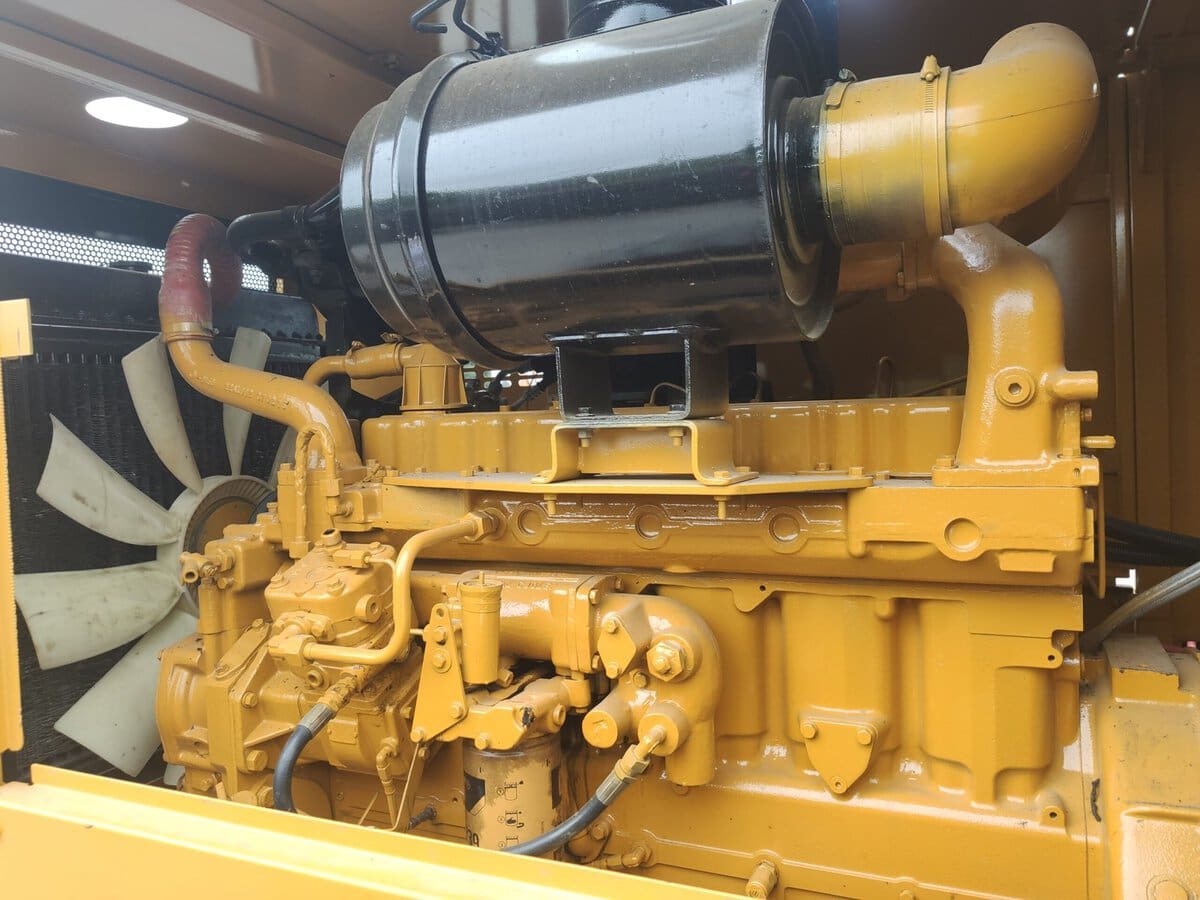

• The CAT 160H Motor Grader is powered by a Caterpillar 3176C ATAAC engine, which is a robust diesel engine that delivers ample horsepower for effective grading operations.
• It has 6 cylinders and a displacement of 10.3 liters (628.6 cu in).
• The net power output ranges from 180 hp (134.3 kW) in gears 1-2 to 200 hp (149.2 kW) in gears 4-6, 5-6, and 7-8.
• Maximum power is 200 hp (149.2 kW), and the net torque for gears 7-8 is 840.9 lb ft (1140 Nm).

Dimensions:

• Overall Length: 33.13 ft (10097 mm)
• Width Over Tires: 8.08 ft (2460 mm)
• Wheelbase: 20.24 ft (6169 mm)
• Tandem Axle Wheelbase: 5 ft (1523 mm)
• Height To Top Of Isomount Cab: 11.02 ft (3356 mm)

Operational Specifications:

• The standard operation weight ranges from 10117.1 lb (4589 kg) for the front axle to 25774.3 lb (11691 kg) for the rear axle, with a total of 35891.3 lb (16280 kg).
• Maximum operation weight ranges up to 51325.9 lb (23281 kg) in total.
• Fuel Capacity is 104.9 gal (397 L), and the cooling system fluid capacity is 10.1 gal (38 L).

Hydraulic System:

• The hydraulic system features an axial piston pump with a flow rate of 68.7 gal/min (260 L/min) and a relief valve pressure of 3502.7 psi (24150 kPa).

Transmission:

• The CAT 160H Motor Grader comes with an 8F/6R powershift transmission, which is direct drive with Advanced Productivity Electronic Control Strategy (APECS).
• Maximum speed in forward gear is 27.1 mph (43.6 km/h), and in reverse, it’s 21.4 mph (34.4 km/h).

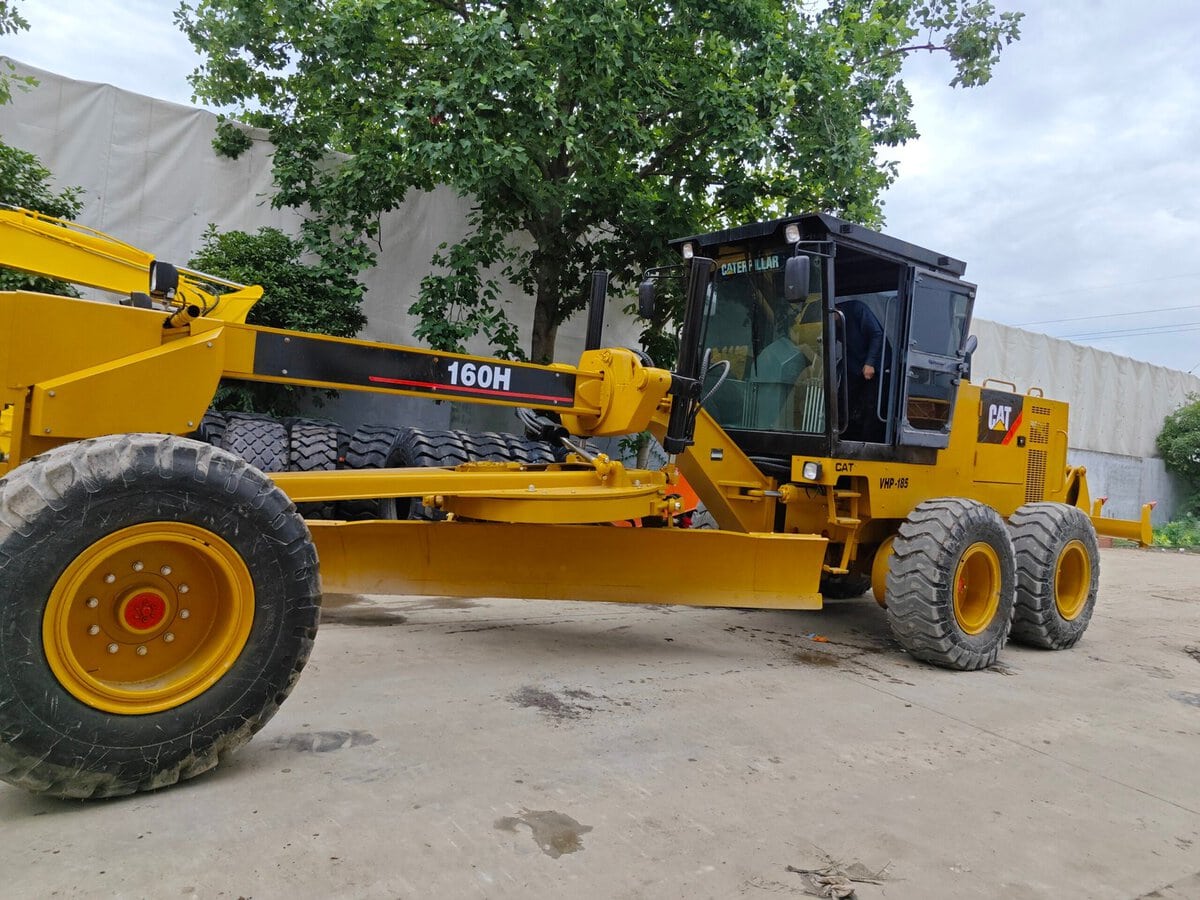

Moldboard:

• Moldboard Width: 14 ft (4267 mm)
• Moldboard Height: 27.1 in (686 mm)
• Moldboard Thickness: 1 in (25 mm)
• Maximum Depth Of Cut: 30.4 in (770 mm)
• Side Shift capabilities are 33.6 in (851 mm) to the left and 37.2 in (943 mm) to the right.

Steering System:

• The articulation angle is 20 degrees, and the turning radius is 24.3 ft (7.4 m).

Comfort and Safety:

• The 160H offers an enclosed cab with heat and AC, providing a comfortable working environment for the operator.

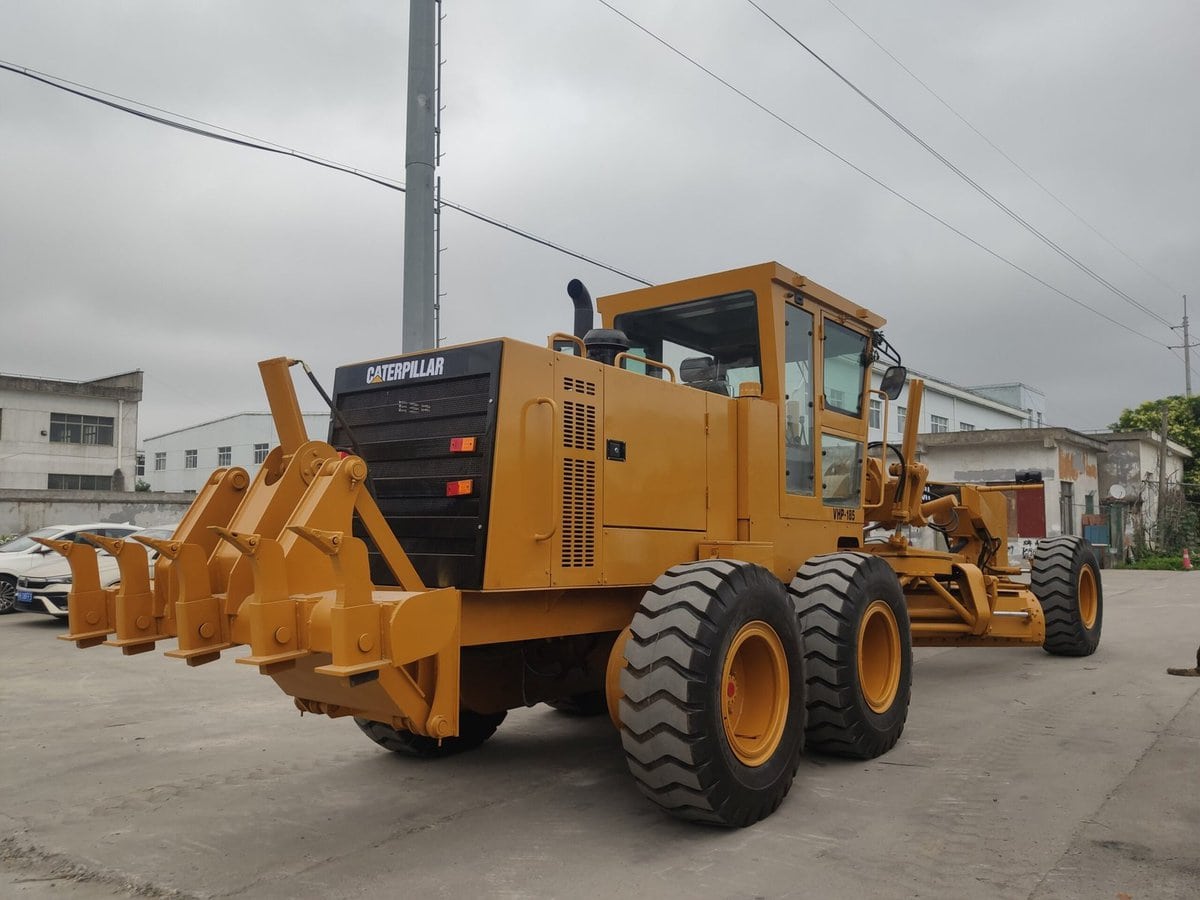

• It also features a rear 5-shank ripper and large tires for added functionality and traction.

The Caterpillar 160H Motor Grader is designed to deliver power, efficiency, and operating finesse, making it an excellent choice for a variety of grading and construction tasks.

CAT 160H Motor Grader specification：
