Description

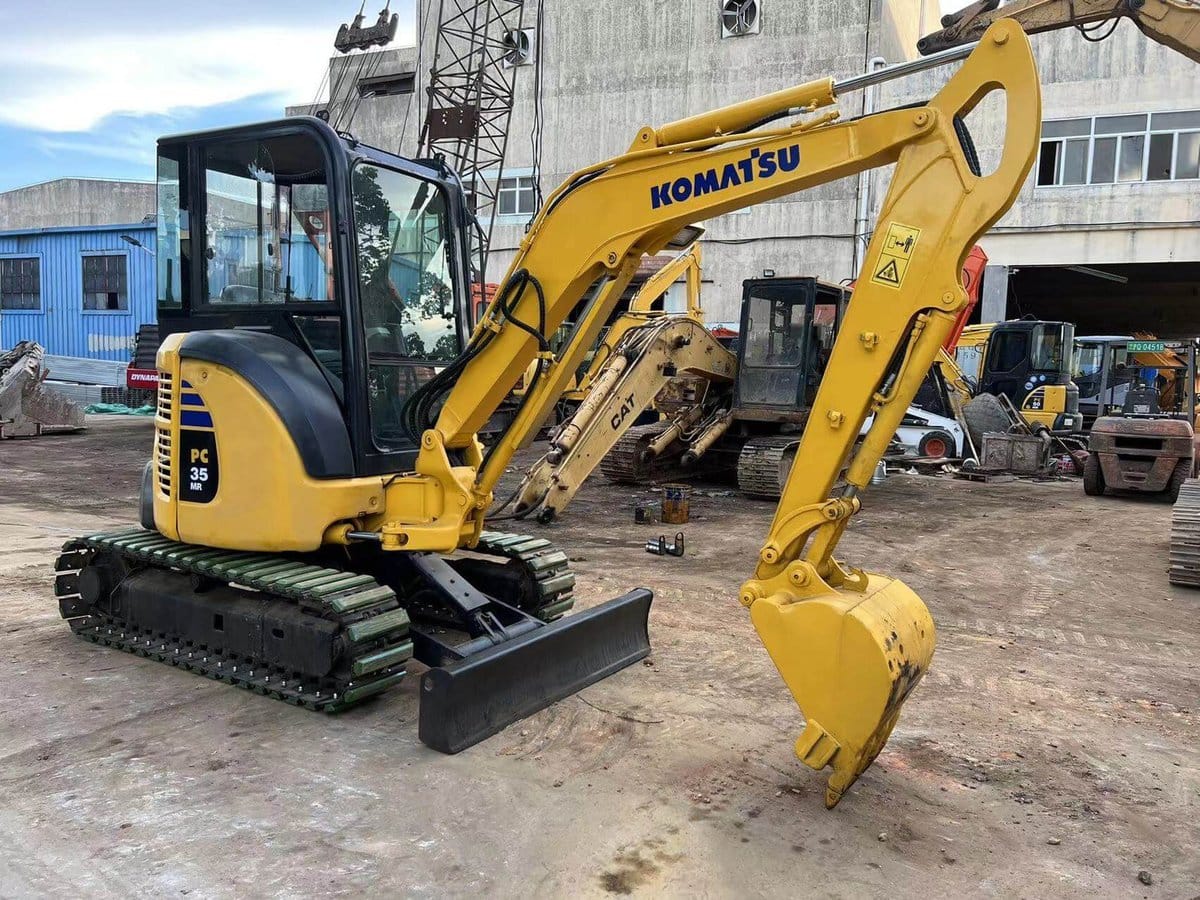

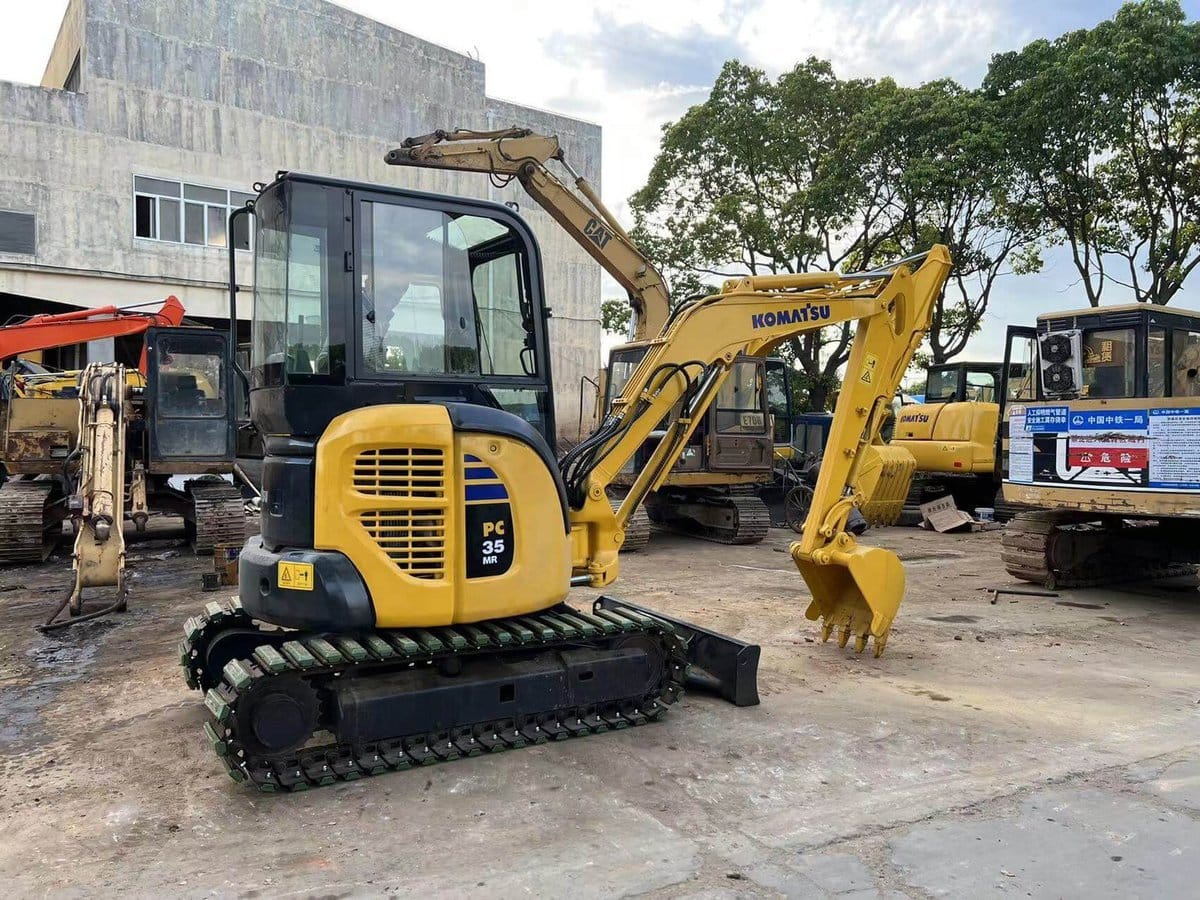

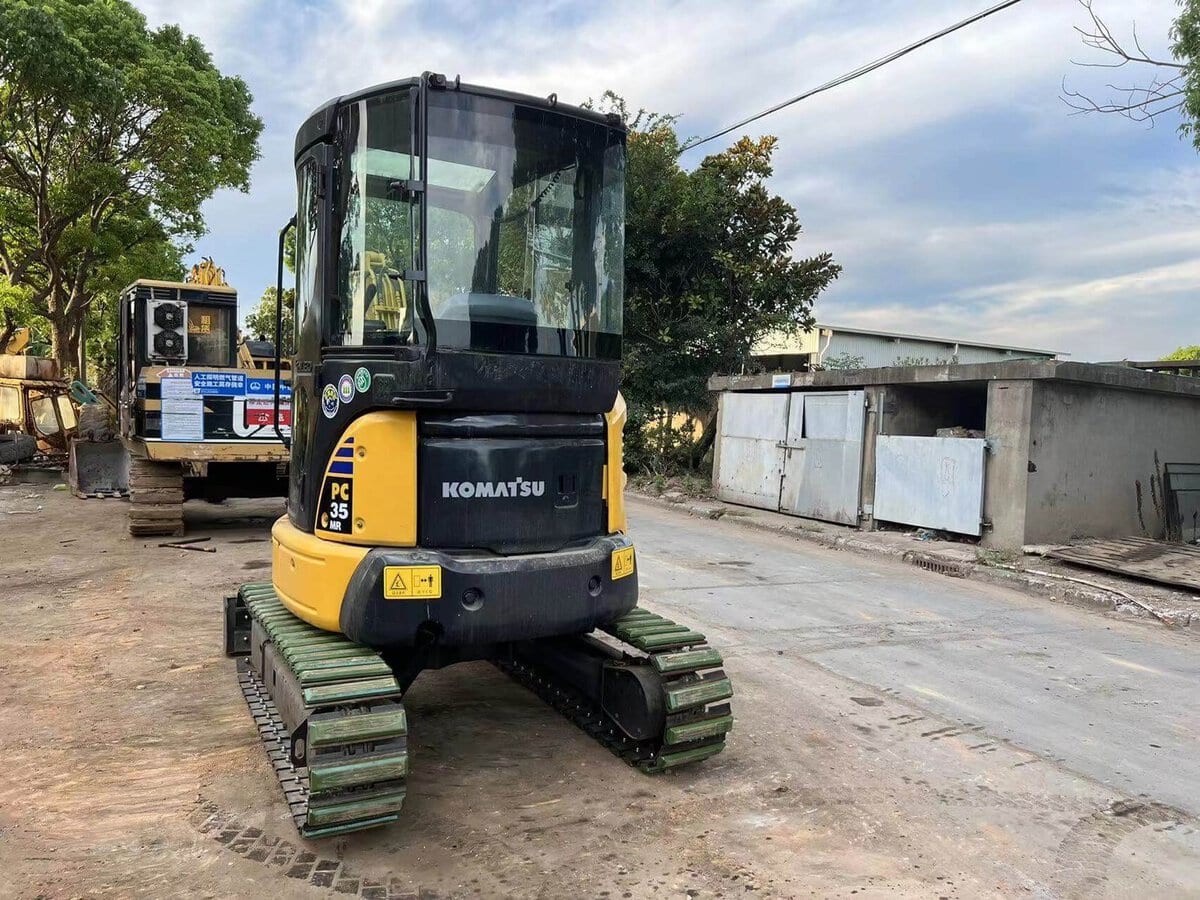

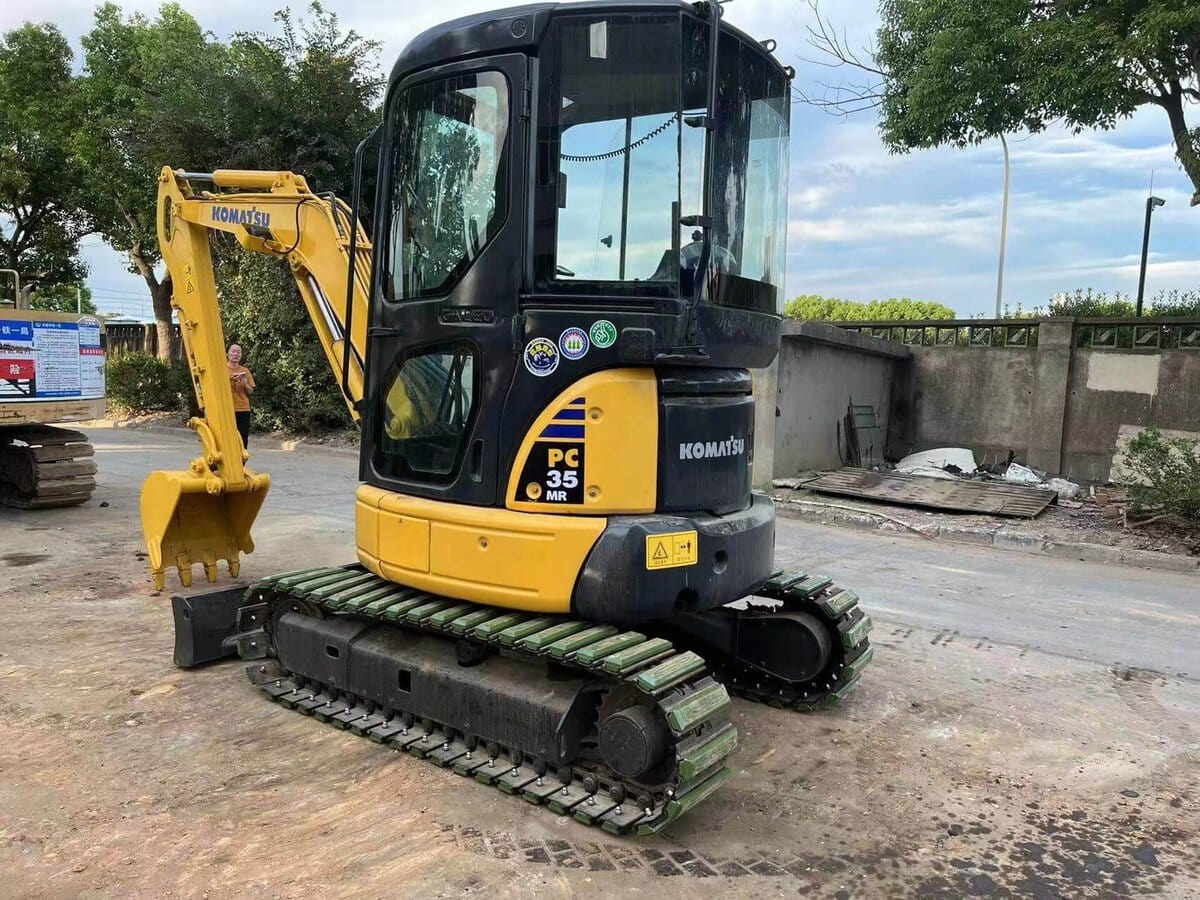

The Mini Komatsu PC35 Excavator is a compact and efficient crawler excavator designed for small-scale excavation and construction projects. Weighing 3.29 tons, it offers a lightweight yet powerful solution for various applications.
With a transport length of 4.8 meters, width of 2.52 meters, and height of 1.7 meters, the Komatsu PC35 is easy to transport and maneuver in tight spaces. Its compact dimensions make it suitable for urban construction sites and landscaping projects.
Equipped with a bucket capacity ranging from 0.035 to 0.13 m³ and a bucket width of 0.6 meters, the Mini Komatsu PC35 Excavator is capable of handling a variety of material handling and digging tasks with ease. Its track width of 300 mm provides stability and traction on different terrains.
Powered by a Komatsu 3D88E engine, the PC35 delivers 21.6 kW of engine power, ensuring reliable performance and fuel efficiency. With a displacement of 1.64 liters and operating at 2400 rpm at maximum torque, it offers sufficient power for digging and loading operations.
The PC35 boasts a max reach horizontal of 5.64 meters and a dredging depth of 3.455 meters, making it suitable for trenching, foundation digging, and utility installations. It has a tear-out force of 20.6 kN, allowing for efficient excavation even in tough soil conditions.
Featuring driver protection in the form of a KbR model series, the PC35 ensures operator safety and comfort during operation. Overall, the Mini Komatsu PC35 Excavator is a reliable and versatile excavator, perfect for contractors and operators working on small-scale projects.
We are an honest and good reputation company which can provide construction machines. The available Komatsu PC35 has the following advantages:
i. Original parts and good work condition.
ii. Low working hours and high working efficiency.
iii. Strong working power and stability.
iv. Complete accessory and no oil leaking.
v. Competitive price and good reputation in the business service.
| Category | Specification |
|---|---|
| Model | Komatsu PC35 |
| Operating Weight | 3,620 kg (7,981 lbs) |
| Engine Model | Komatsu 3D88E-6 |
| Engine Power | 21.7 kW (29 HP) @ 2,400 rpm |
| Fuel Tank Capacity | 41 liters (10.8 gallons) |
| Maximum Digging Depth | 3,050 mm (120.1 inches) |
| Maximum Reach at Ground Level | 5,245 mm (206.5 inches) |
| Maximum Dumping Height | 3,480 mm (137 inches) |
| Bucket Capacity | 0.11 m³ (0.14 yd³) |
| Overall Length | 4,780 mm (188.2 inches) |
| Overall Width | 1,740 mm (68.5 inches) |
| Overall Height | 2,550 mm (100.4 inches) |
| Tail Swing Radius | 1,480 mm (58.3 inches) |
| Ground Clearance | 305 mm (12 inches) |
| Hydraulic Pump Flow Capacity | 100 liters/min (26.4 gallons/min) |
| Hydraulic System Pressure | 24.5 MPa (3,553 psi) |
| Track Shoe Width | 300 mm (11.8 inches) |
| Ground Pressure | 28 kPa (4.1 psi) |
| Cabin | Enclosed with air conditioning (optional) |
| Control System | Pilot proportional hydraulic control |
| Attachments | Various buckets and hydraulic attachments can be used |
