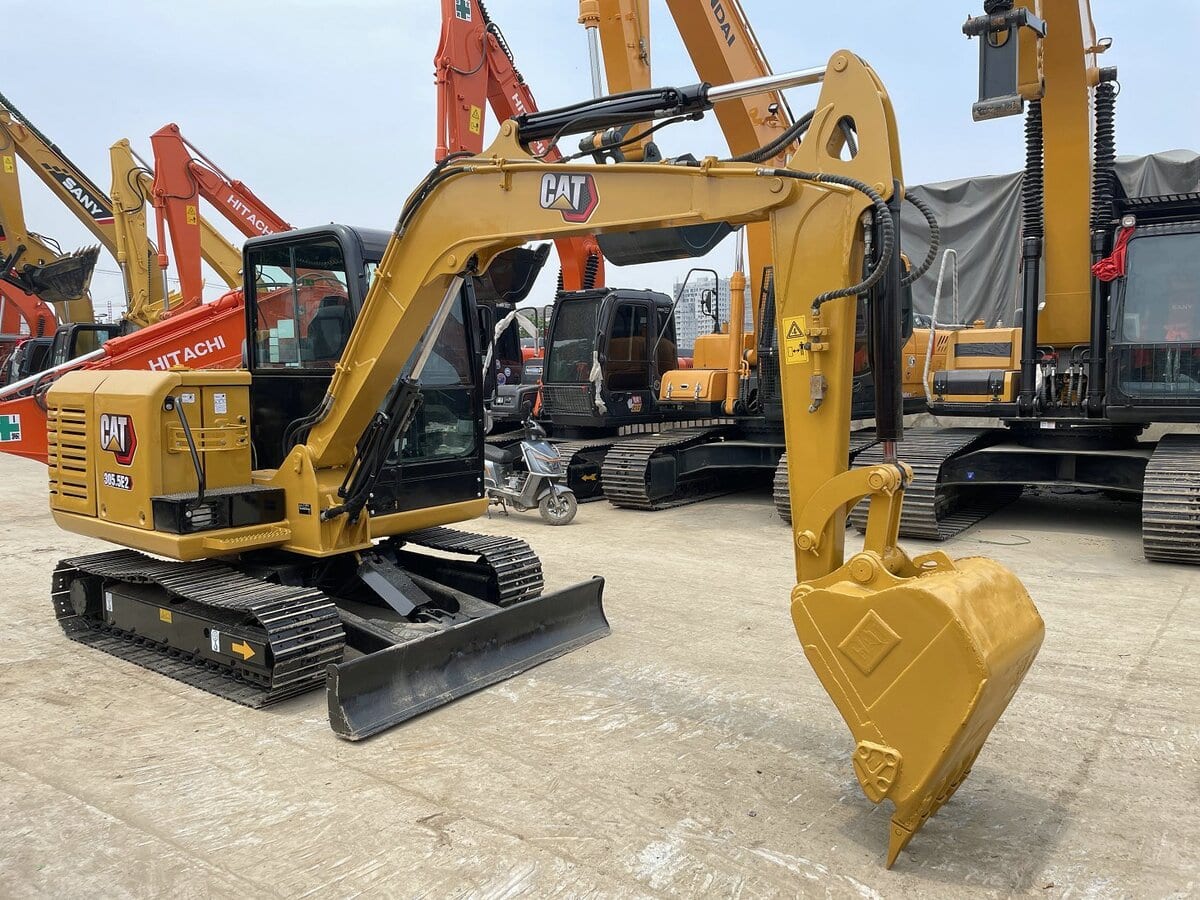

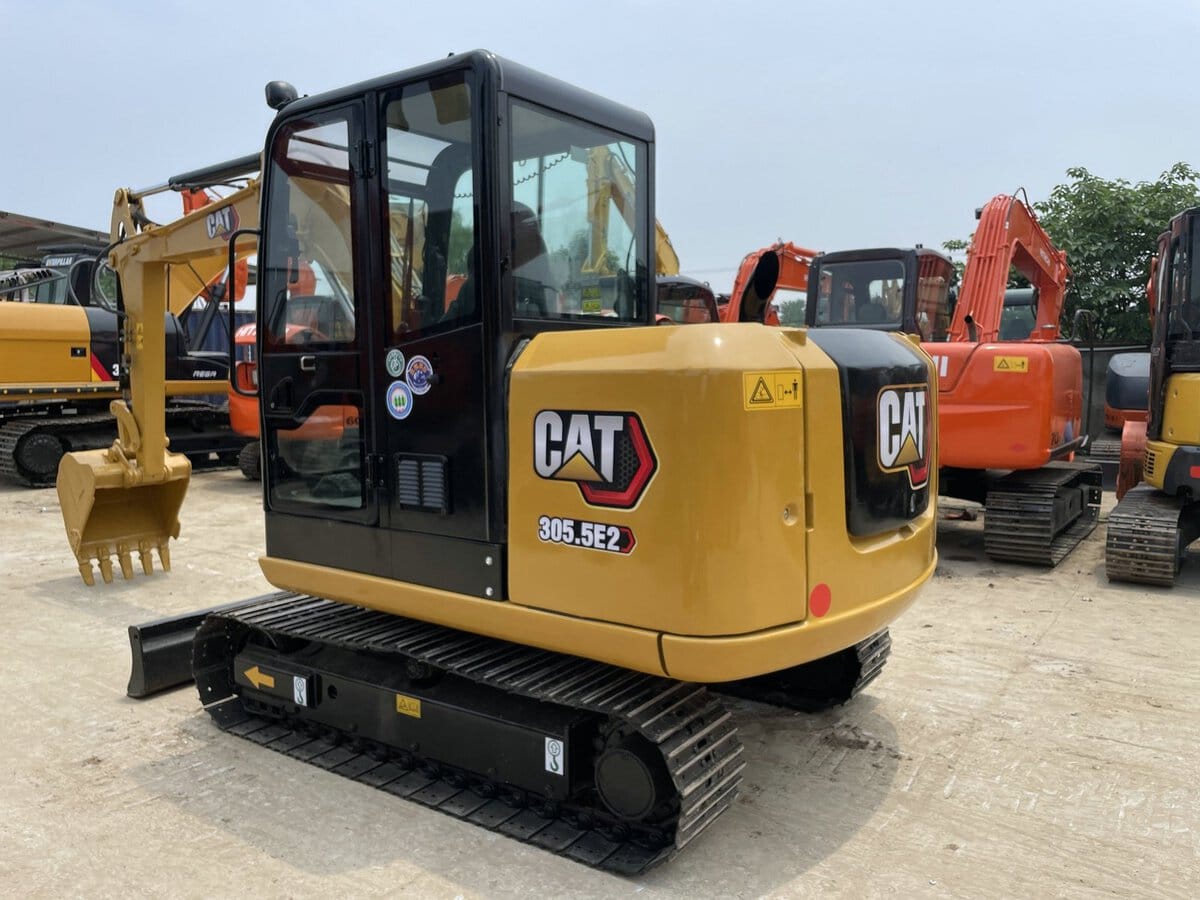

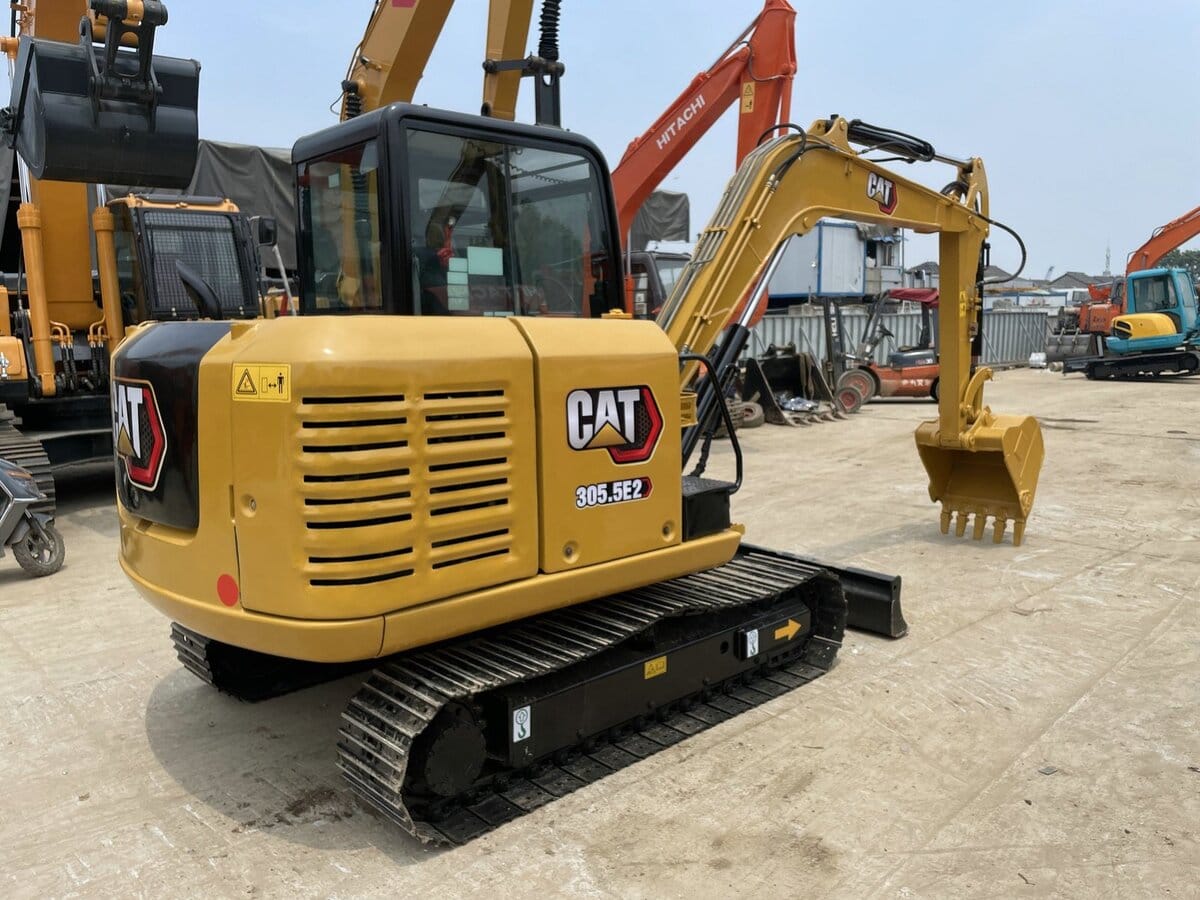

Caterpillar CAT 305E2 mini excavator is an advanced model of Caterpillar’s compact hydraulic excavators, known for its enhanced performance, versatility, and operator comfort,The Caterpillar CAT 305E2 mini excavator is part of Caterpillar’s E2 Series of mini hydraulic excavators. This model is designed to deliver powerful digging capabilities in a compact size, making it highly effective for a variety of construction, landscaping, and utility applications. It builds on the success of the 303.5E with improvements in technology, efficiency, and operator experience. all machines are in stock now, can be delivered any time.
CAT 303.5E2 excavator represents an evolution in compact excavator design, offering improved power, efficiency, and comfort over previous models. It is engineered to handle a wide range of tasks with precision and reliability. With its advanced technology, durable construction, and operator-friendly features, the 303.5E2 is an excellent choice for contractors seeking a compact yet powerful excavator for diverse job sites.
| Specification | Details |
|---|---|
| Engine | |
| Model | Cat C2.4 |
| Net Power | 31.6 kW (42.3 hp) @ 2,400 rpm |
| Gross Power | 32.9 kW (44.1 hp) @ 2,400 rpm |
| Operating Weight | |
| With Standard Stick | 5,130 kg (11,310 lbs) |
| Dimensions | |
| Maximum Dig Depth | 3,530 mm (139.0 in) |
| Maximum Reach at Ground Level | 5,820 mm (229.1 in) |
| Maximum Reach | 5,950 mm (234.3 in) |
| Maximum Dump Height | 3,680 mm (144.9 in) |
| Tail Swing Radius | 1,170 mm (46.1 in) |
| Hydraulic System | |
| Hydraulic Flow – Auxiliary Circuit – Primary | 90 L/min (23.8 gal/min) |
| Hydraulic Flow – Auxiliary Circuit – Secondary | 24 L/min (6.3 gal/min) |
| Auxiliary Hydraulic Pressure | 245 bar (3,553 psi) |
| Travel System | |
| Travel Speed – High | 4.7 km/h (2.9 mph) |
| Travel Speed – Low | 2.6 km/h (1.6 mph) |
| Maximum Traction Force – High Speed | 24.5 kN (5,509 lbf) |
| Maximum Traction Force – Low Speed | 44.7 kN (10,048 lbf) |
| Swing System | |
| Swing Speed | 10 RPM |
| Blade | |
| Height | 405 mm (15.9 in) |
| Width | 1,980 mm (78.0 in) |
| Fuel Tank Capacity | 60 L (15.9 gal) |
| Hydraulic Tank Capacity | 60 L (15.9 gal) |
