Xcmg 100 Ton Crane QY100 Mobile Cranes Used For Sale

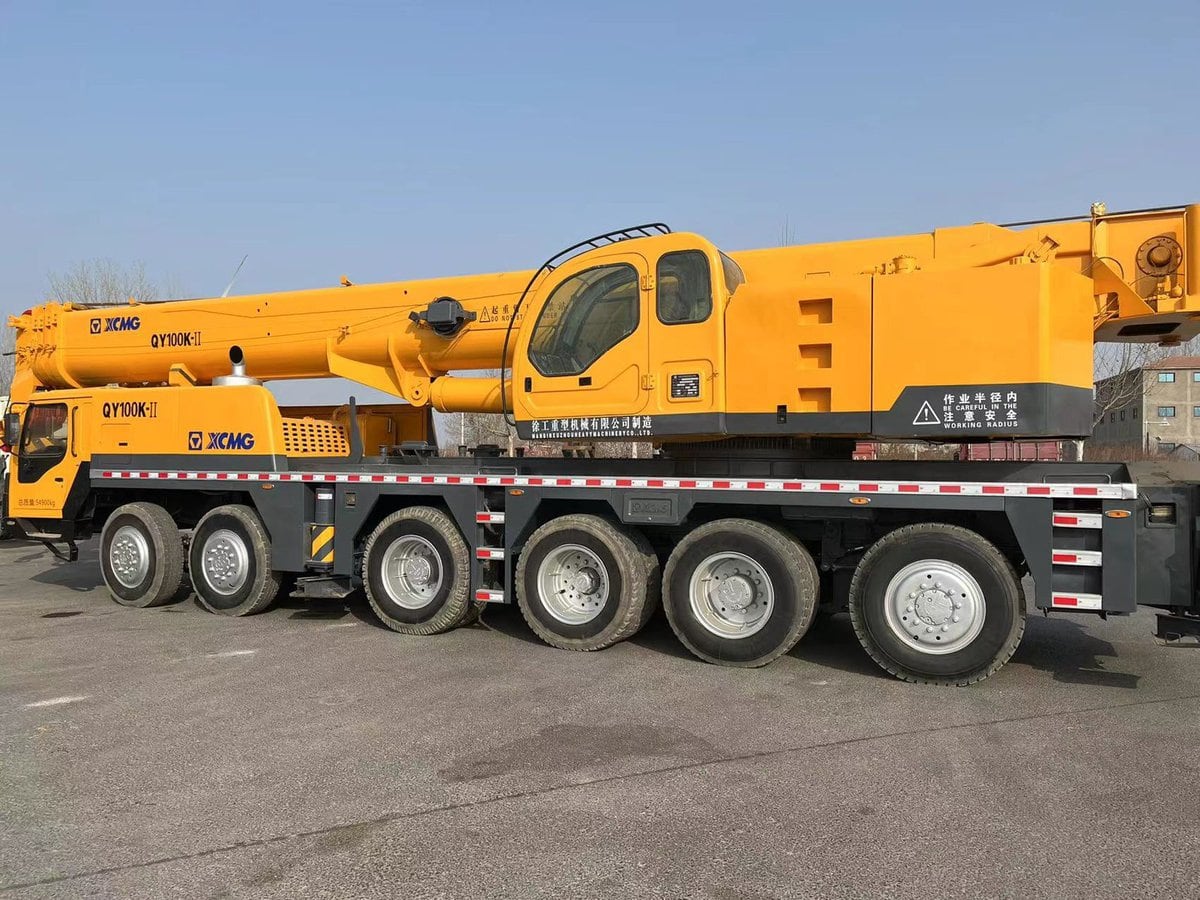

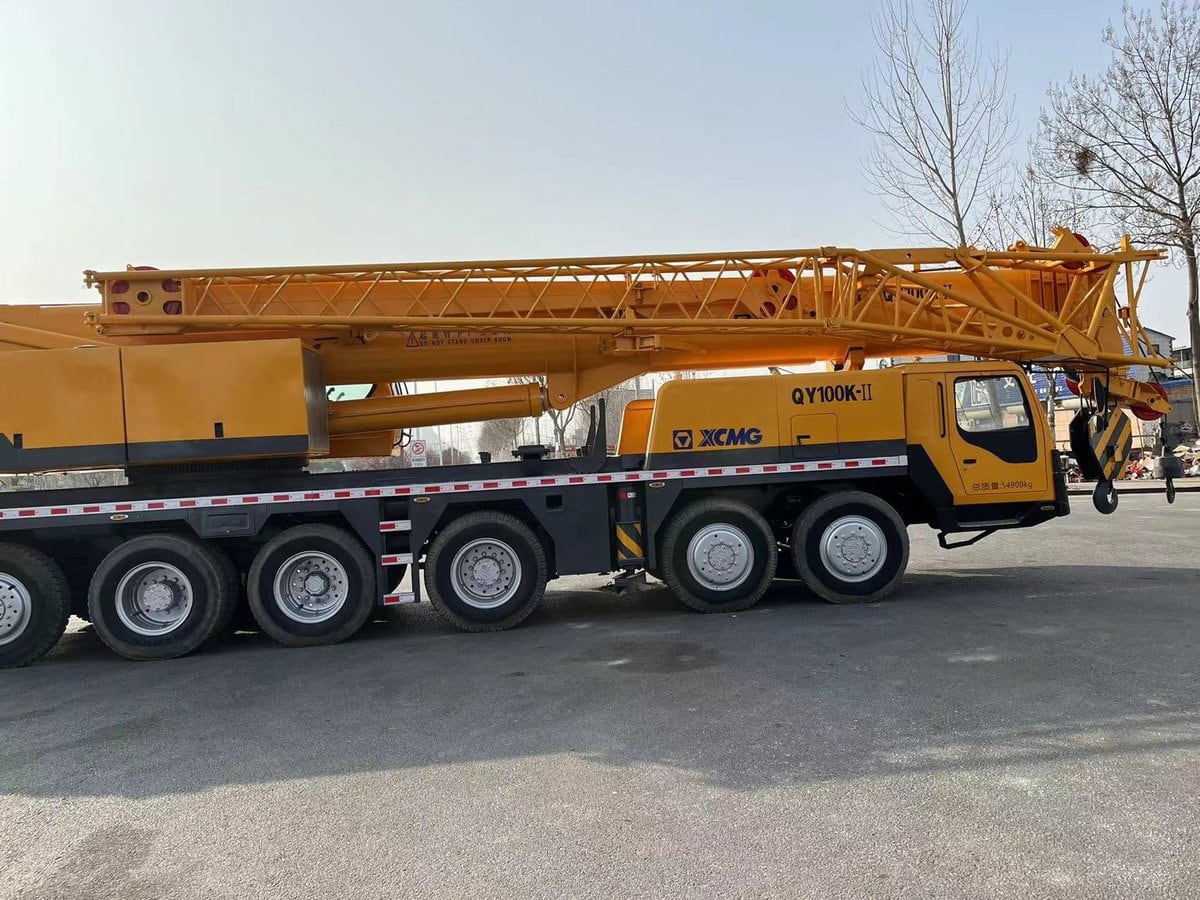

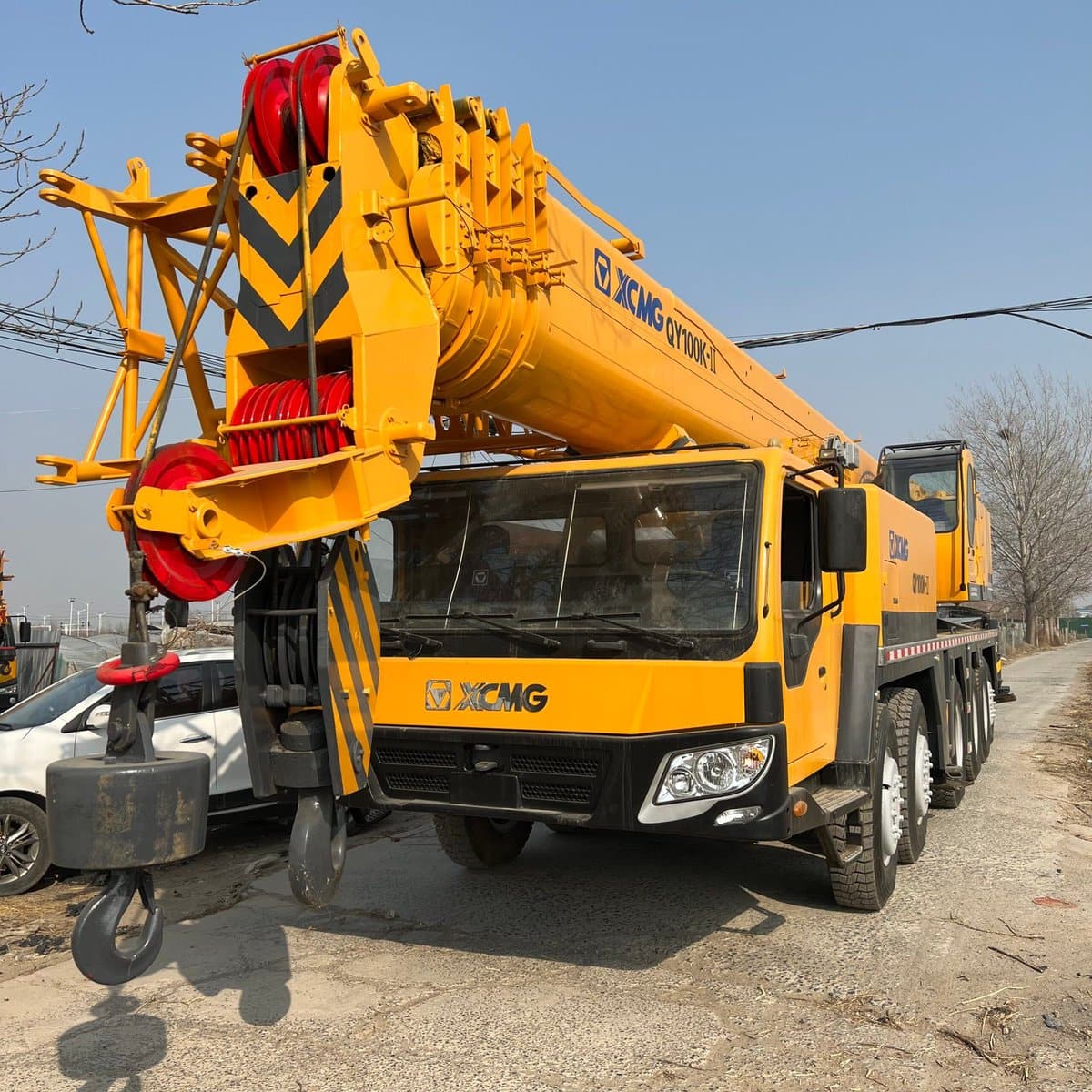

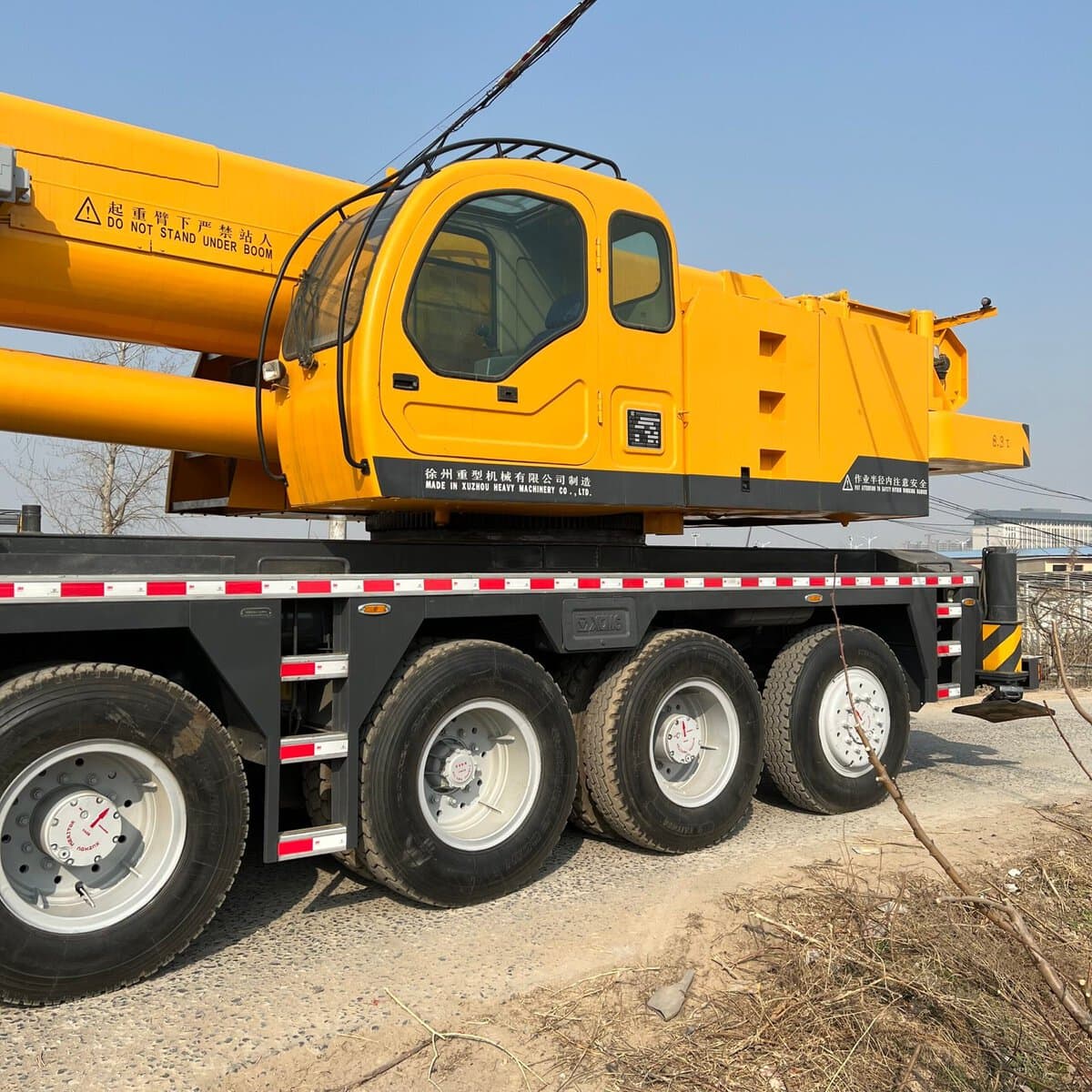

The XCMG 100 Ton Crane QY100K-I is a 100-ton truck crane manufactured by XCMG, known for its high-quality lifting machinery.

General Specifications:

• Model: XCMG 100 Ton Crane QY100K-I
• Overall Dimensions: 15600 mm (length) × 3000 mm (width) × 3850 mm (height)
• Wheelbase: 1420+2420+1800+1420+1505 mm
• Total Weight in Travel: 54900 kg to 58000 kg
• Axle Load: Varying loads across six axles, with the first and second axles bearing 7500 kg each, the third axle 8300 kg, the fourth and fifth axles 12000 kg each, and the sixth axle 7600 kg.

Engine and Power:

• Engine Rated Power: 360 kW at 1800 r/min (or 306 kW at 1900 r/min)
• Engine Rated Torque: 2200 N.m at 1300 r/min (or 2010 N.m at 1200 r/min)
• Engine Rated Speed: 1800 r/min (or 1900 r/min)
• Minimum Ground Clearance: 310 mm.

Performance and Mobility:

• Approach Angle: 20°
• Departure Angle: 14°
• Braking Distance at 30 km/h: ≤10 m
• Maximum Grade Ability: 40%
• Minimum Turning Diameter: 24 m
• Fuel Consumption for 100 km: 70 L.

Lifting Performance:

• Maximum Rated Total Lifting Capacity: 100 tons
• Minimum Rated Working Radius: 3 m
• Turning Radius at Turntable Tail: Counterweight 4200 mm, Aux. winch 4590 mm
• Maximum Lifting Torque: 3450 kN.m
• Base Boom: 3450 kN.m (4m × 88t)
• Fully Extended Boom: 1950 kN.m (24m × 7.1t)
• Fully Extended Boom + Jib: 1230 kN.m (19.2m × 6t)
• Outrigger Span (Full Extension): Longitudinal 7.56 m, Lateral 7.6 m
• Lifting Height: Base boom 13.5 m, Fully extended boom 50.9 m, Fully extended boom + jib 70.4 m.

Working Speed:

• Jib Setting Angle: 0°, 15°, 30°
• Boom Luffing Time: 75 s
• Boom Telescoping Time (Full Extension): 160 s
• Maximum Swing Speed: 2 r/min
• Outrigger Extension/Retraction Time: Beam 25 s/15 s, Jack 45 s/25 s
• Lifting Speed (Single Rope, Layer 4): Main winch 105 m/min, Aux. winch 104 m/min.

Specification  for the XCMG 100 Ton Crane QY100 truck crane:
